Xtract® Full Flow Filters (6x18)

150+

• Microfiber Glass* (particulate & water removal)
• Synthetics, water glycols, water/oilemulsions, petroleum-based, high water content

• Water Removal Molecular Sieve
• Transformer insulating

• Acid Removal with Activated Alumina**
• Transformer insulating

• Acid Removal with Selexsorb®**
• Phosphate esters, synthetics,petroleum-based

*Viscosity grade oil for which this filter is recommended.
Special options available: Viton® gaskets, EPDM

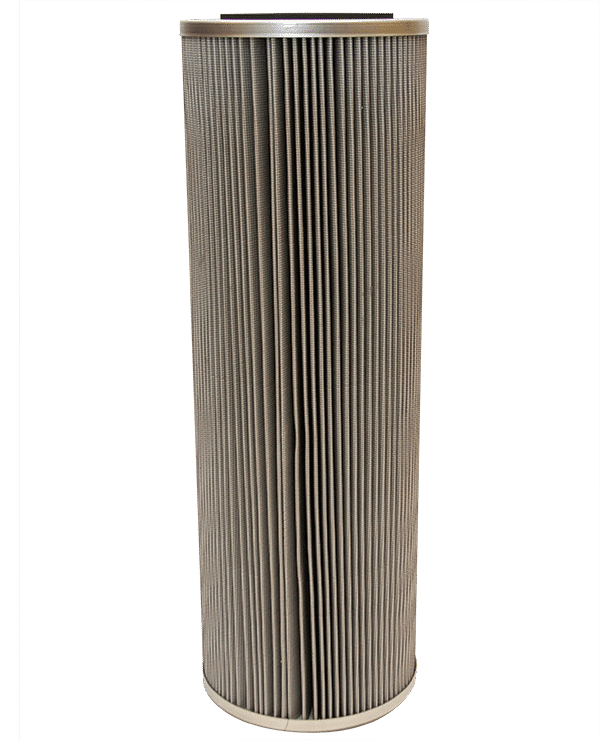

Full Flow Filter (6x18)

• Synthetic media with smooth, rounded fibers forlow resistance to fluid flow
• Excellent chemical compatibility
• High dirt-holding capacity
• Performance to B<(c) =1000 (per ISO 16889)
• Media Type: microfiber glass epoxy coated wire support
• Maximum differential pressure: 150 psi
• Maximum flow rate: 150 gpm
• Maximum viscosity: ISO VG 1000
• End cap & center tube: corrosion protected steel
• Flow direction: outside in
• Gasket material: nitrile
• Collapse pressure rating: 125 psid
• Temperature range: -43 to 107°C (-45 to 225°F)
• Replacement pressure: 25 psid
