Simple, robust, reliable lubrication system

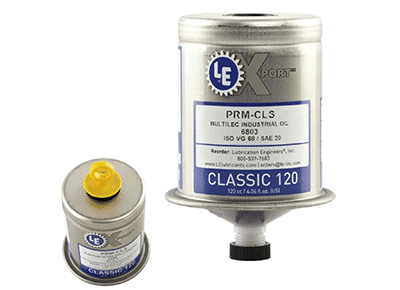

The Xport™ Classic automatic single point lubricator can be used for all applications with ambient temperatures of 0° to 40°C (32° to 104°F). The reliable operating principle is based on an electrochemical reaction. The lubrication period is determined by color-coded activator screws. Depending on your application’s requirement, you may choose to discharge 120 cc (4.06 fl oz) in a period of 1, 3, 6 or 12 months. The activator screw generates a maximum pressure of 4 bar (58 psi), which moves the piston forward and continuously injects small lubricant amounts into the lubrication point.
If you cannot find the lubricant or product you need, please let us know what your requirements are by contacting us.
For a more detailed quote, choose similar products and add them to your Quote Cart. You will be able to provide additional project details in Quote Cart Checkout.
$65.47
Select OptionsActivator Screws
Tooltip Text 1
Lubricant Assistance
Tooltip text 2
Pick LE grease type if you know selection (Click 'Add to Cart' to choose option.)
Tooltip text 3
You have chosen to be contacted for lubricant selection assistance.
Drive
Electrochemical reaction via gas generator
Housing
Metal
Lubricant Volume
120 cc (4.06 fl oz)
Lubricants
Oil and grease up to NLGI 2
Metal Housing
- Robust housing for use in harsh environments
Operating Temperature
0° to 40°C (32° to 104°F)
Pressure build-up
Max. 4 bar (58 psi)
Applications
- Chains
- Gear racks
- Open gears
- Roller & sliding bearings
- Shaft seals
- Sliding guides
- Spindles
Typical Industries
- Automotive
- Mechanical engineering
- Mining
- Steel
Ex-proof Certification Mining Approval
- Safe and reliable lubrication in explosive areas
- Better workplace safety; dangerous areas have to be visited for maintenance less often
- Suitable for underground use
Simple Activation through Activator
- One-time activation: 1,3,6 or 12 months
- Tamper-proof, easy to use
- Economical, permanent lubrication
- Quick and easy exchange without special tools
Operating Temperature
0° to 40°C (32° to 104°F)
