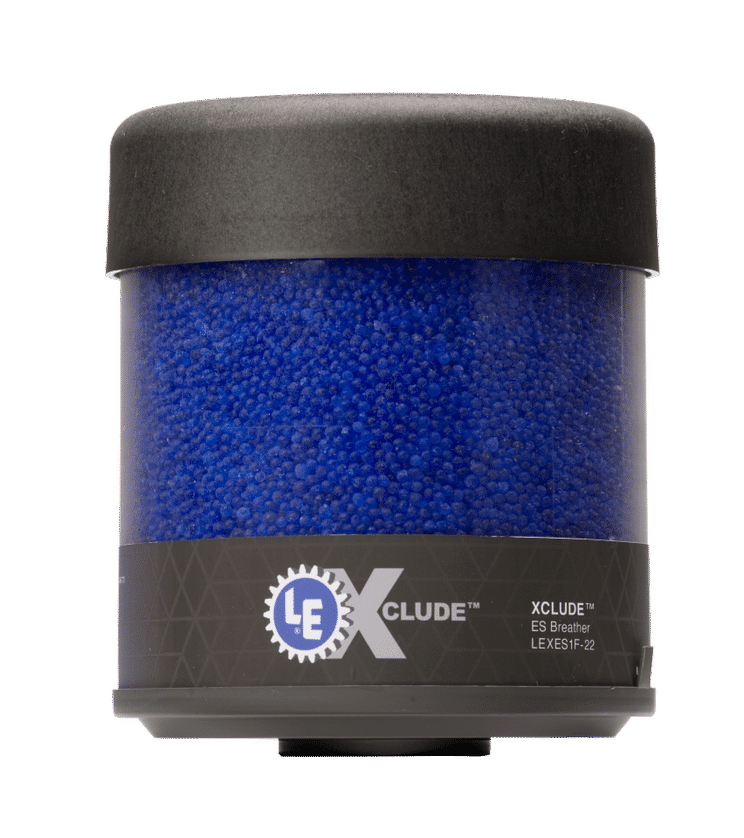

Xclude® Extended Series Desiccant Breather
Item # LEXES1F-22 — Xclude® Extended Series Desiccant Breather
Xclude®; Extended Series Breather
High airflow, long-lasting desiccant breathers with check-valve technology are ideal for tank forms and large applications
If you cannot find the lubricant or product you need, please let us know what your requirements are by contacting us.
For a more detailed quote, choose similar products and add them to your Quote Cart. You will be able to provide additional project details in Quote Cart Checkout.
Amount of Desiccant
2.2lb/1.0kg lb
Chemical Compatibility
Recommended:
- All Gear Oil
- Most Hydraulic Fluid
- Mineral & Synthetic Oil
- Hydrogen sulfide
- Sulfuric acid
- Highly alkaline cleaners
Connection
1" Female (FNPT)
Filter Efficiency
(3μ absolute (ß3≥200)
Materials & Components
- Filter media: Polyurethane, polyester
- Hydrophilic agent: Silica gel
- All other materials: Polycarbonate, nylon, polypropylene, PVC, Buna-N, silicon, EPDM
Max Airflow Rate (cfm @1 psid)
26cfm / 736lpm
Maximum Water Retention
14.1 fluid oz / 417 ml
Recommended Max. Volume (Gearbox/Storage Tank)
600gal / 2271L
Recommended Max. Volume (Hydraulic Reservoir)
200gal / 757L
Shipping Weight (unit/case)
1.86kg / 11.97kg
4.1lbs / 26lb
Unit Height
163 mm
6.4 in
Unit Width
5.665 in
143.88 mm
Applications
- Storage tanks
- Wind turbines
- Large gearboxes
- Remote applications
Recommended Temperature Range
- -20°F to 200°F (-29°C to 93°C)
Typical Industries
- Wind Energy
- Storage
- Pulp & paper
- Mining
- Aviation
- Manufacturing
- Petrochemical
Max Airflow Rate (cfm @1 psid)
26cfm / 736lpm
