Graphite Block

Item # GS-MISC — Graphite Block

All Downloads

Dry Film Lubricant Guarantees High Performance in Hostile Environments while Reducing Wear and Noise

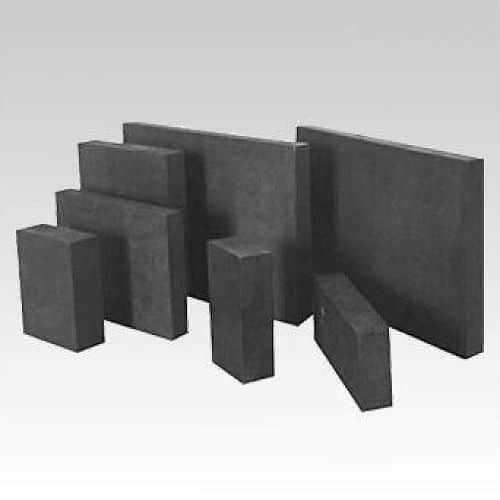

Graphite Block dry film lubricant is composed of synthetic, lubricant-quality graphite that is specifically designed to lubricate trunnion rollers, riding rings and insert seals on rotary kilns, calciners, dryers and other industrial equipment requiring dry film lubrication.

The Graphite Block lubricant lowers pressure on the bearing thrust mechanism, while reducing forces on bearing end caps or thrust collars. It substantially reduces wear and noise, resulting in decreased maintenance costs; smoother, quieter operation; and longer lasting equipment.

LE’s Graphite Block is a unique carbon composition manufactured under the tightest internal controls. This makes for a highly consistent graphite block that guarantees optimum lubrication even in the most hostile environments, and prevents remature wear of the graphite.

If you cannot find the lubricant or product you need, please let us know what your requirements are by contacting us.

For a more detailed quote, choose similar products and add them to your Quote Cart. You will be able to provide additional project details in Quote Cart Checkout.

Add to Quote

QTY

Specifications

Operating Temperature °C (°F)

-40 (-40) to 600 (1,112)

Physical State

Solid (powder)

Quality Standards

Environmentally safe: non-GLP fish toxicity

Size (custom)

Rounds: 0.25" to 55" diameter Rectangles: Up to 16" thick, 32" wide, 110" long

Benefits and Recommendations

Application Notes

In kiln and dryer applications, the block lubricant transfers from the trunnion roller to kiln tire and lubricates both surfaces during normal rolling. • In overhead and port crane applic...

Beneficial Qualities

Custom - Cut to your specific requirements to maximize benefits and performance.
Wear-Reducing - Greatly reduces friction and wear.
Heat Resistant - Designed to perform in hightemperature applications.
Self-Extinguishing - Will not sustain combustion under atmospheric conditions.
Rain-Resistant - Does not wash off in rain.
Noise-Reducing - Stops or substantially reduces high pitch squeal; and ensures smoother, quieter operation.
Clean - Provides clean, dry lubrication.
Appearance - Does not glaze over during operation.

Typical Applications

Trunnion rollers, riding rings and insert seals on rotary kilns, calciners and dryers where a dry lubricant is needed
Free-floating support and thrust rollers and tires on rotary kilns and dryers
Leading and training bogie wheels on overhead and port cranes
Suitable for other industrial applications requiring dry film lubrication

Typical Industries
